Wired Touch Probe SLP25

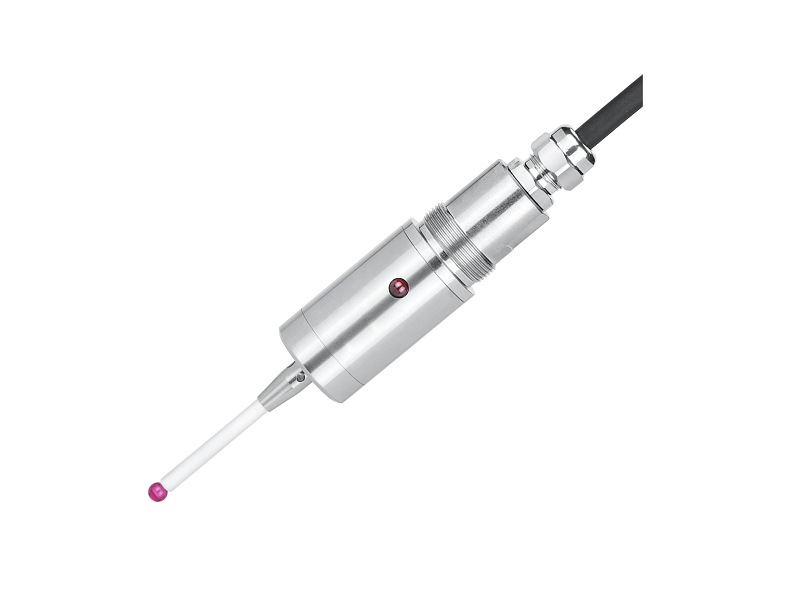

SLP25 Wired Touch Probe
Our wired 3D touch probes are precision-engineered tools designed for accurate workpiece detection in CNC machining environments. Unlike wireless systems, these probes transmit signals via a direct cable connection, ensuring stable, interference-free communication with the machine control system.
Built with a modular design, the probe’s length can be customized and extended to suit various machine configurations. It also features an integrated status indicator light, providing clear visual feedback of the probe’s operational state for ease of monitoring.

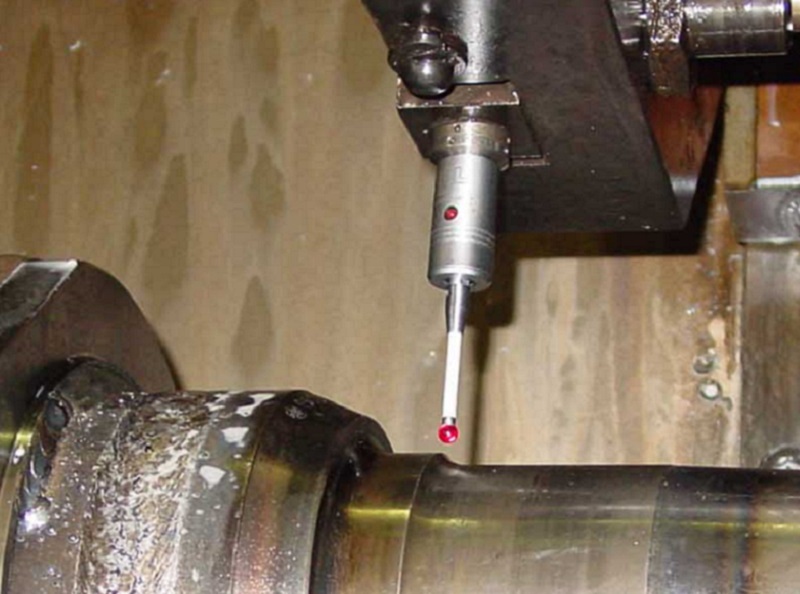

The probe delivers exceptional stability, repeatability, and reliable trigger accuracy—even in high-speed machining applications. These features make it an ideal solution for lathes, high-speed engraving machines, and a variety of other CNC tools where consistent part referencing is critical to machining precision.
To install the probe on your machine, a mounting bracket is required, allowing for secure and accurate placement within the workspace.
Whether you’re aiming to reduce setup time, eliminate manual errors, or enhance the overall accuracy of your production, this probe offers the performance and reliability needed to elevate your machining operations.
SilverCNC SLP25 wired touch probe specification
| Model | SLP25 | |
| Unidirectional repeatability Use standard 50mm probe at 600mm/min speed |
1um (2σ) | |
| Sense directions | ±X,±Y,+Z | |
| Stylus trigger force Use standard 50mm probe |
XY plane 0.4 – 0.8N |
Z direction 4.0N |
| Trigger protection trip | XY plane +/-15° |
Z direction 6.35mm |
| Signal transmission method | Hard wired | |
| Trigger life | >10 Million | |
| Transmission on/off style | smart switch | |
| Weight without shank (including batteries) | 80g | |
| Hard wire | 5m, oil resistance, 4 core | |
| Sealing | IP68 | |
| Operating temperature | 0-60℃ | |
