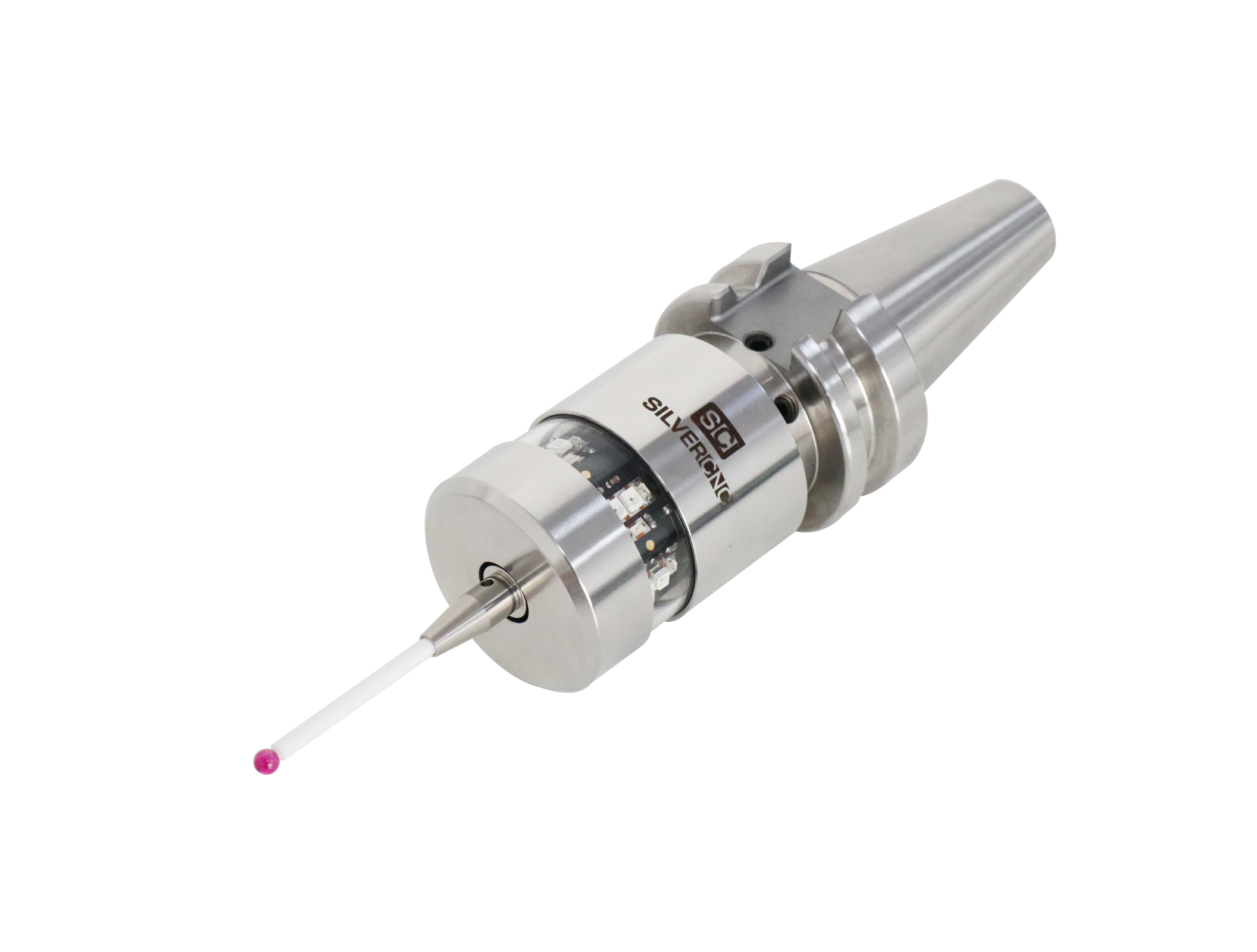

Infrared Touch Probe SOMP40
SOMP40 Infrared Touch Probe

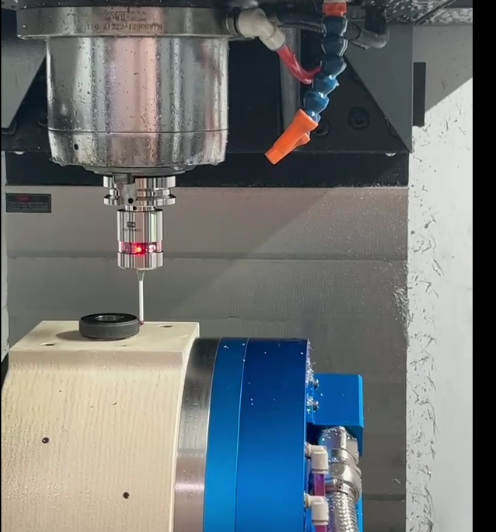

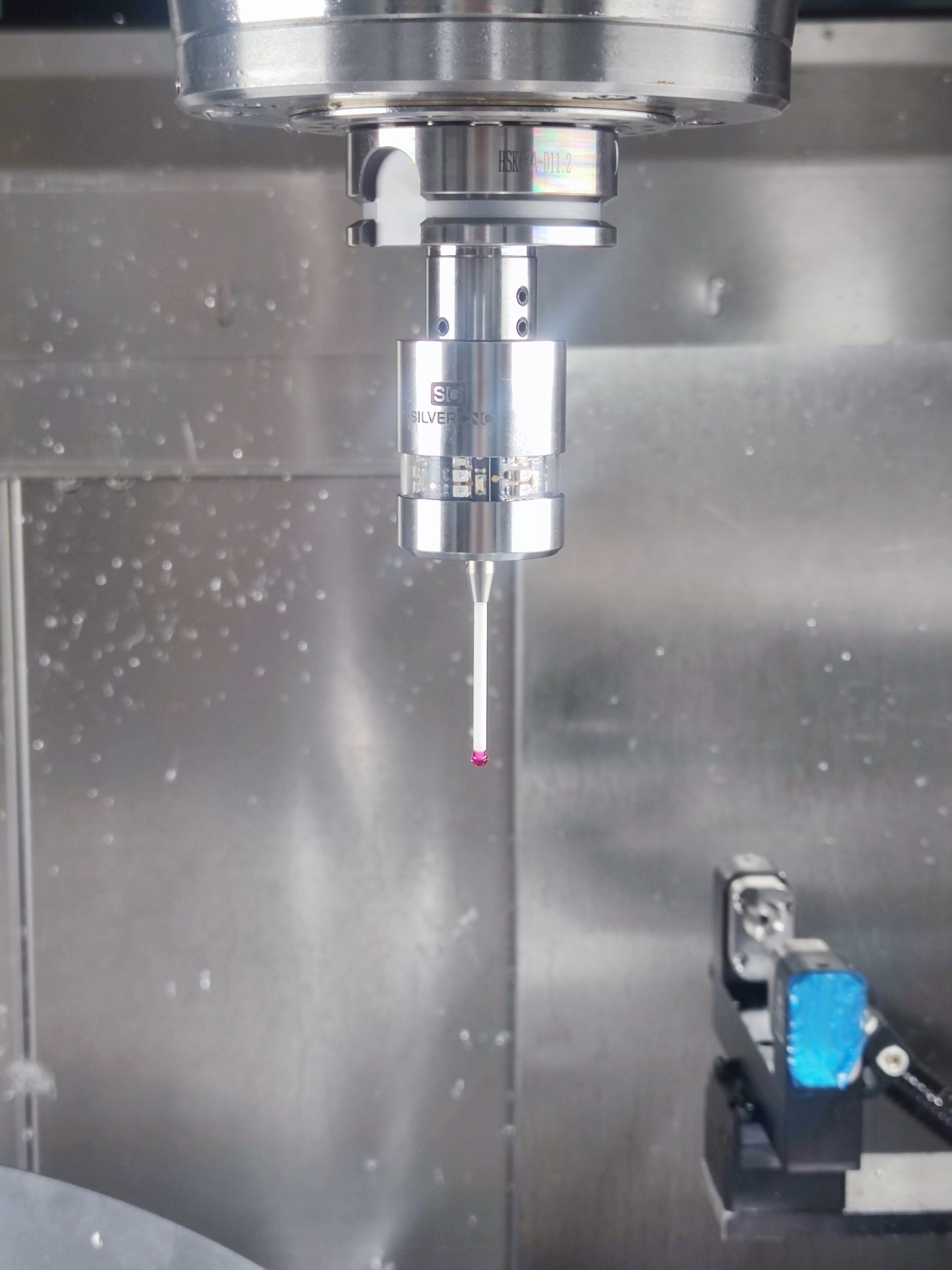

Before machining begins, the infrared touch probe quickly and accurately sets workpiece coordinates, helping to eliminate incoming material errors and ensuring the part is perfectly positioned. During the machining process, the probe can measure part flatness, distances, angles, hole diameters, and more, providing real-time data to guarantee every component meets exact specifications.
SilverCNC SOMP40 touch probe specification
SOMP40 uses pulse signal triggering, not level signal
Long battery life, up to one year of normal use
| Model | SOMP40 | |
| Unidirectional repeatability Use standard 50mm probe at 600mm/min speed |
1um (2σ) | |
| Sense directions | ±X,±Y,+Z | |
| Stylus trigger force Use standard 50mm probe |
XY plane 0.4 – 0.8N |
Z direction 4.0N |
| Trigger protection trip | XY plane +/-15° |
Z direction 6.35mm |
| Signal transmission method | infrared transmission | |
| Operating range | 5m | |
| Trigger life | >10 Million times | |
| Transmission angle | 360 ° along the probe axis | |
| Transmission on/off style | Pulse triggered signal | |
| Weight without shank (including batteries) | 280g | |
| type of battery | 2x lithium battery 14250 | |
| battery life | Standby | >600 days |
| 5% use | >540 days | |
| continue use | >360 days | |
| Sealing | IP68 | |
| Operating temperature | 0-60℃ | |
