Non Contact Laser Tool Setter

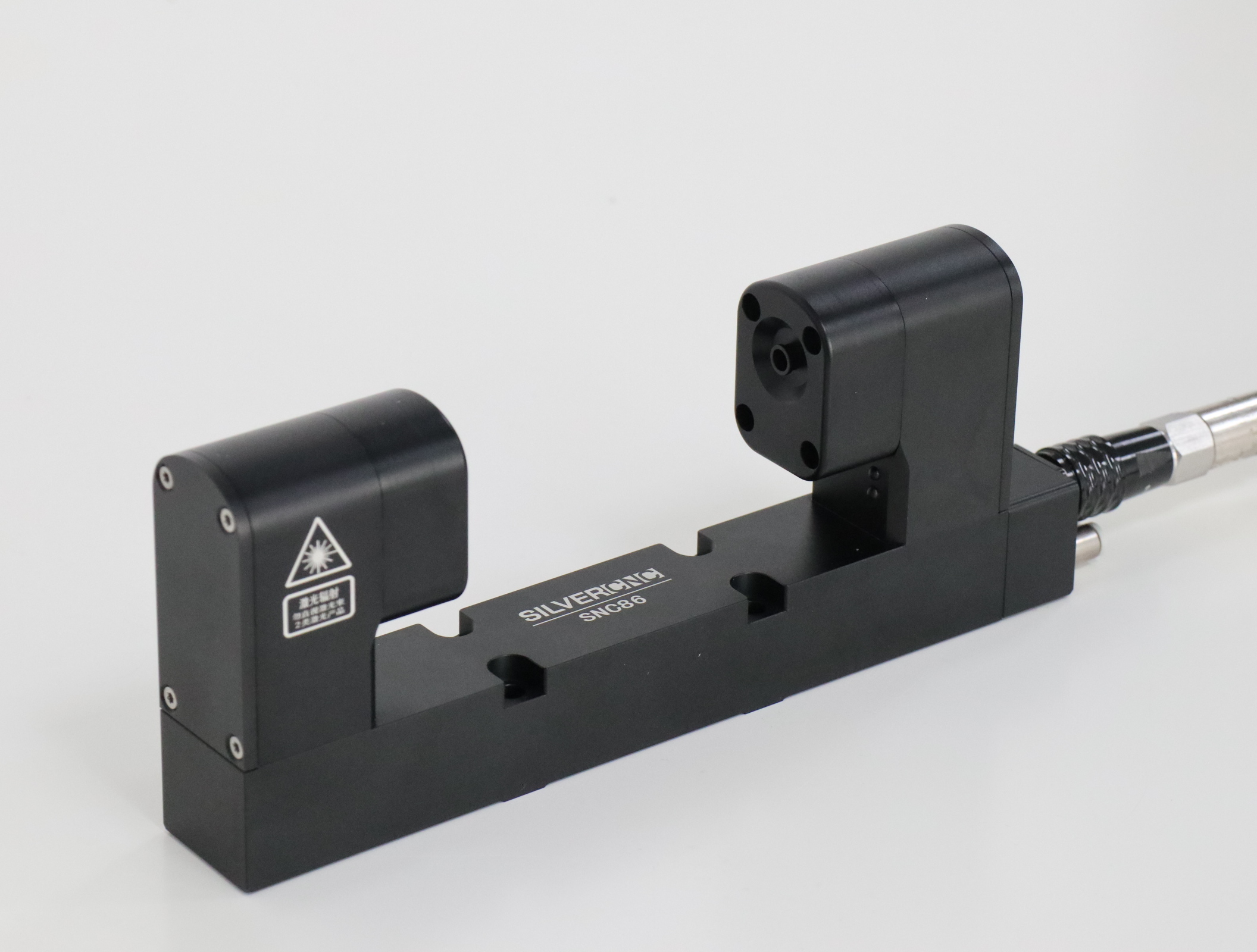

Non Contact Laser Tool Setter SNC56/86/168

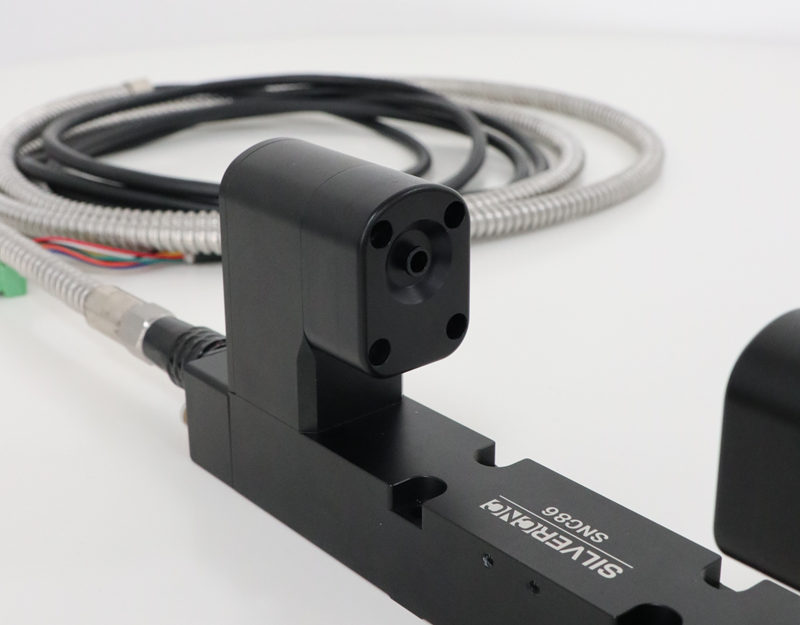

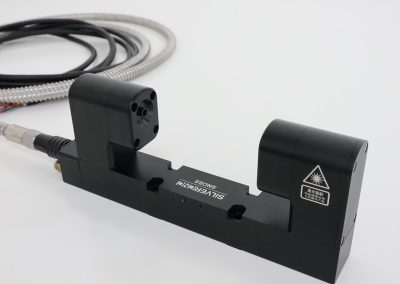

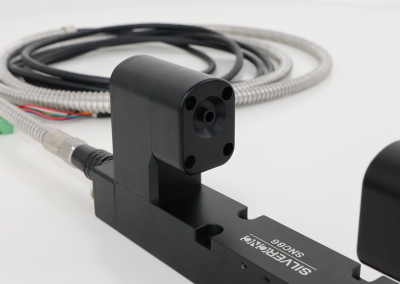

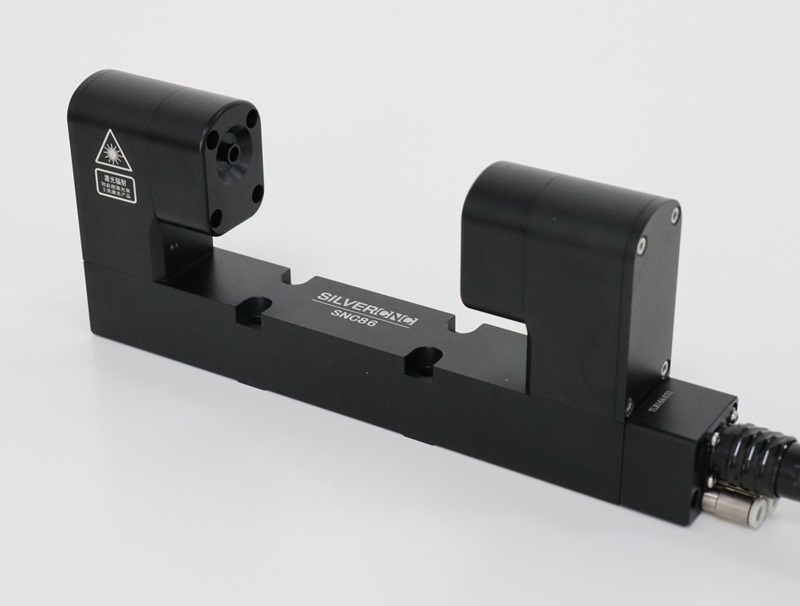

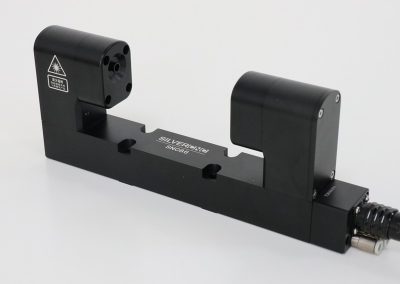

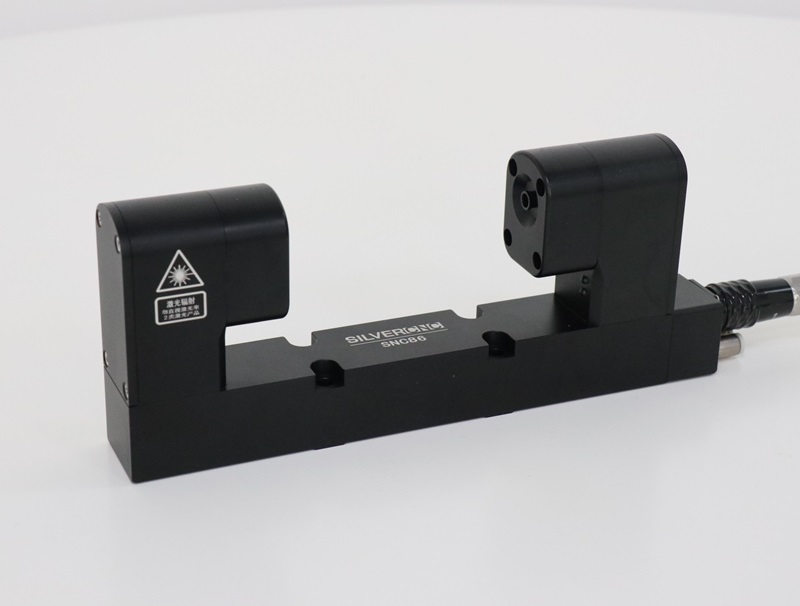

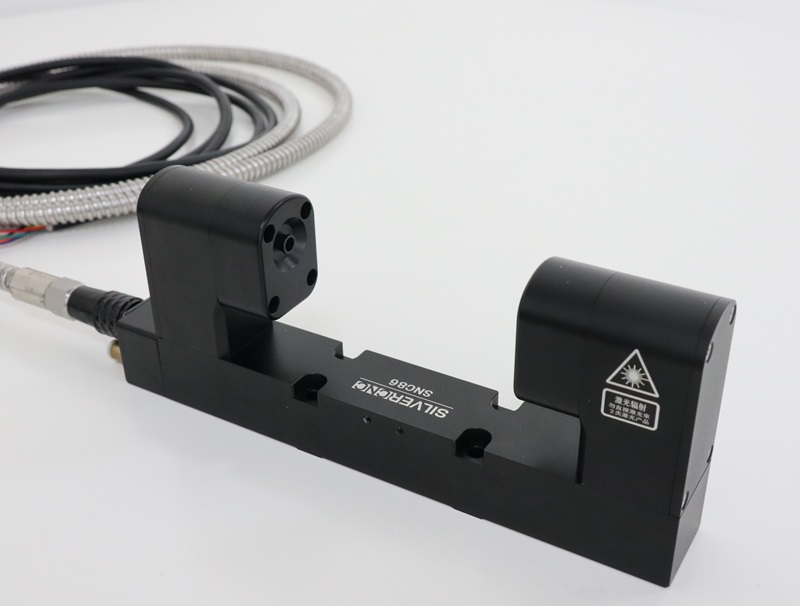

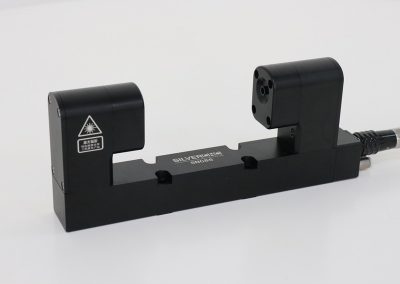

Upgrade your CNC machining process with the SilverCNC Non-Contact Laser Tool Setter – a cutting-edge solution for high-speed, high-accuracy tool measurement. Designed for maximum precision and reliability, this advanced system uses laser technology to measure tool length, diameter, and detect breakage without ever touching the tool. The result? Improved tool life, reduced setup time, and enhanced machining accuracy.
Available in multiple sizes (SNC56, SNC86, SNC168), this non-contact setter supports a wide range of tool diameters and boasts repeatability as fine as ±0.1 μm. Whether you’re running high-volume production or precision-critical jobs, the SilverCNC laser setter is engineered to optimize your workflow while preserving your tools.
Seamlessly integrate it into your CNC system to experience faster calibration, minimal machine downtime, and consistent, reliable performance.
Non Contact Laser Tool Setter SNC56/86/168 Specification
| Principal application | High-precision, high-speed non-contact tool setting and tool breakage detection on all sizes of vertical and horizontal machining centres,multi-tasking machines and gantry machining centres |
| Laser beam alignment | The unit is supplied with an adjustable mounting plate on the underside |
| Cable(to interface) | Hard-wired systems: cable on the end of the unit. |
| Sealing | IPX8 |
| typical repeatability | ±0.1 µm 2σ |
| Repeatability | ±1 µm (2σ) |
| minimum tool or feature size | Ø0.1 mm orlarger |
| max tool or feature size | 86 mm， |
| minimum tool for breakage detection | Ø0.1 mm orlarger |
| power | 100 mA @ 24 V |
| output signal | No voltage solid state relay (SSR). Each relay may be normally open. Current (Max.) 50 mA, voltage (Max.) ±50 V |
| Storage temperature | ~10 °C-50 °C |
| Operating temperature | 5 °C-50 °C |
| Life | Tested to > 1 million on/off cycles |
| pneumatic supply | 4 mm Air pipe, 6.0 bar (87.02 psi) maximum 3 bar(43psi) min. |
| Cable | Ø6.0*8m (0.24 in) , two twisted pairs, two individual cores plus screen, each core 18 × 0.1 mm insulated |
| Mounting | M10 (3/8 in) |
